| Model | JSM30 | JSM50 | JSM80 | JSM120 | JSM200 |
| Preset Pressurelm[pa] | 25 | 25 | 25 | 25 | 25 |
| Max Pressurelmpal | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max Diameter of The Treel[mm] | 120 | 200 | 300 | 350 | 500 |
| Clamp Max Opening[mm] | 400 | 565 | 607 | 847 | 995 |
| Weightf[kg] | 160 | 265 | 420 | 1160 | 1570 |
| Lengthímm] | 750 | 950 | 1150 | 1595 | 1770 |
| Dimensions Width[mm] | 450 | 690 | 810 | 1245 | 1405 |
| Height[mm] | 430 | 530 | 615 | 820 | 825 |
| Applicable Excavatorst[t] | 2-3 | 4-6 | 8-10 | 12-18 | 20-30 |

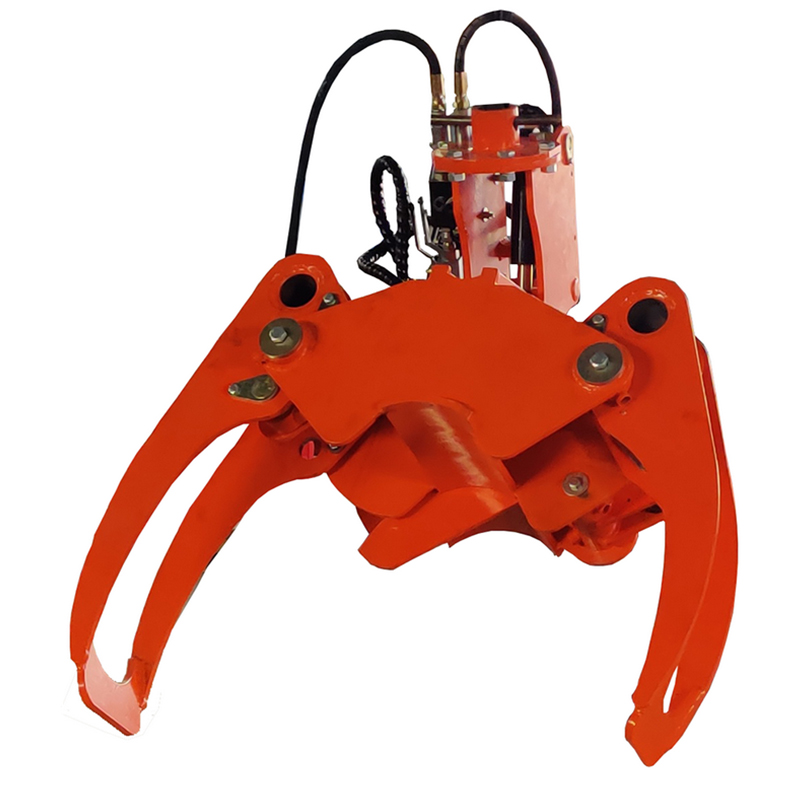

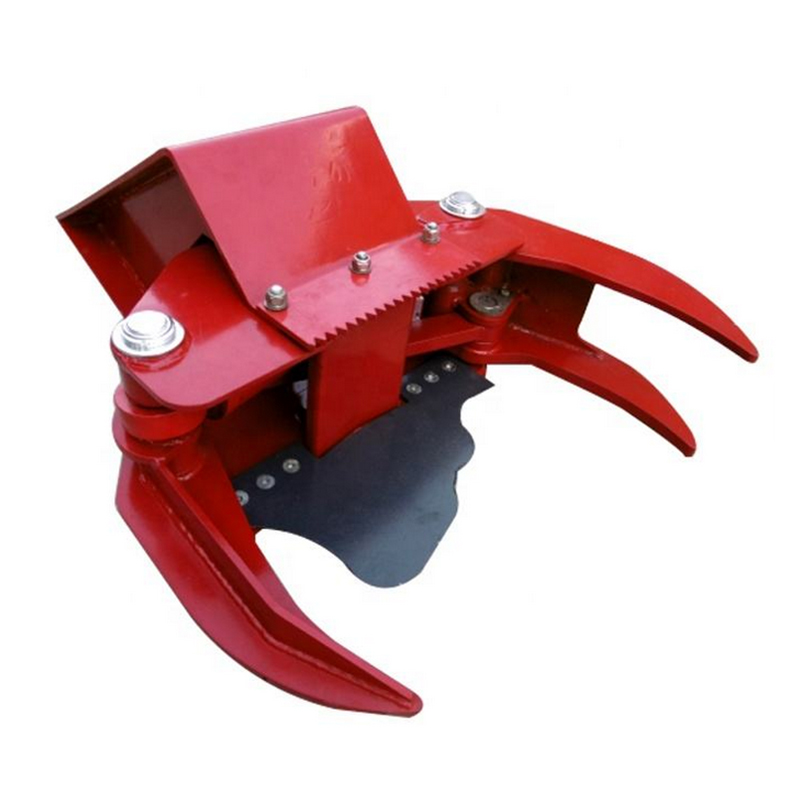

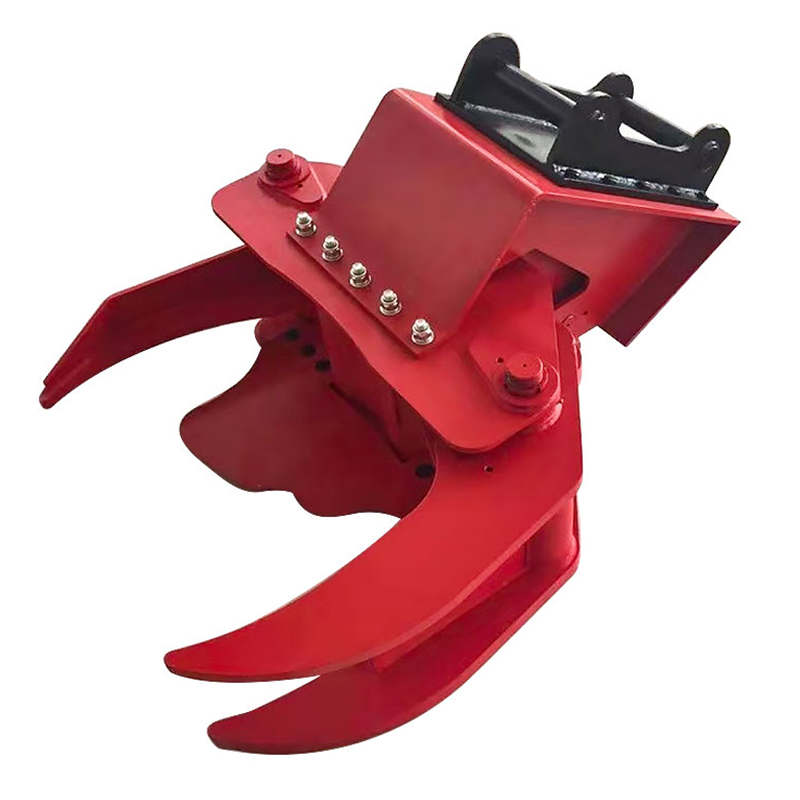

Excavator tree shear is one of the easiest tree shears to use on the market,with quick and easy alignment and a simple grab-to-cut action,the cutting cycle is rapid.Fitted with a bolt-on Hardox 500 blade for an extra sharp cut with extended durability,this tree shear can cut through hardwoods of up to 200-350 mm in one motion.
Excavator tree shear Features
The blade is a replaceable bolt detachable type.
■ With retaining plate to prevent faling of rees
■ Cut the tree and move it as it is
■ Can cut down fallen trees
■ Grass collection and transport work is also possible
■ Used with 1 system reciprocating piping(2 piping),no drain piping or electrical wiring required
