| Indicator |
Unit |
Model |
| Matched Tractor |
hp |
≥80 |
| Trimming Diameter |
mm |
≤100 |
| Horizontal Trimming Height (H1&H2) |
mm |
600~4100 |
| Vertical Trimming Height (V1&V2) |
mm |
280~6000 |
| Trimming Width (W) |
mm |
2300 |
| Working Speed |
km/h |
1~2 |
*Please call customer service to contact us for actual accessory parameters

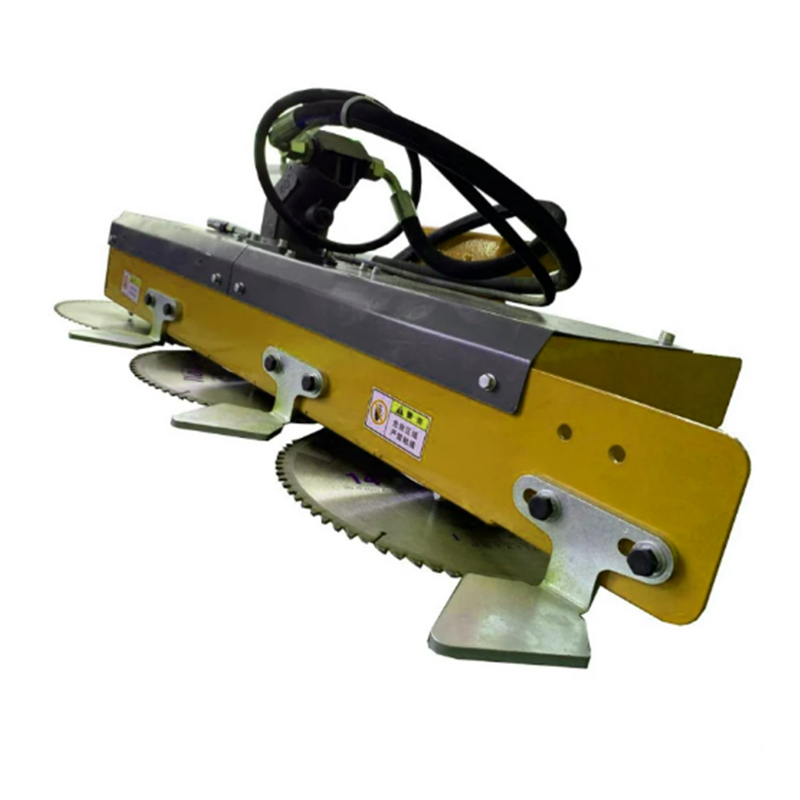

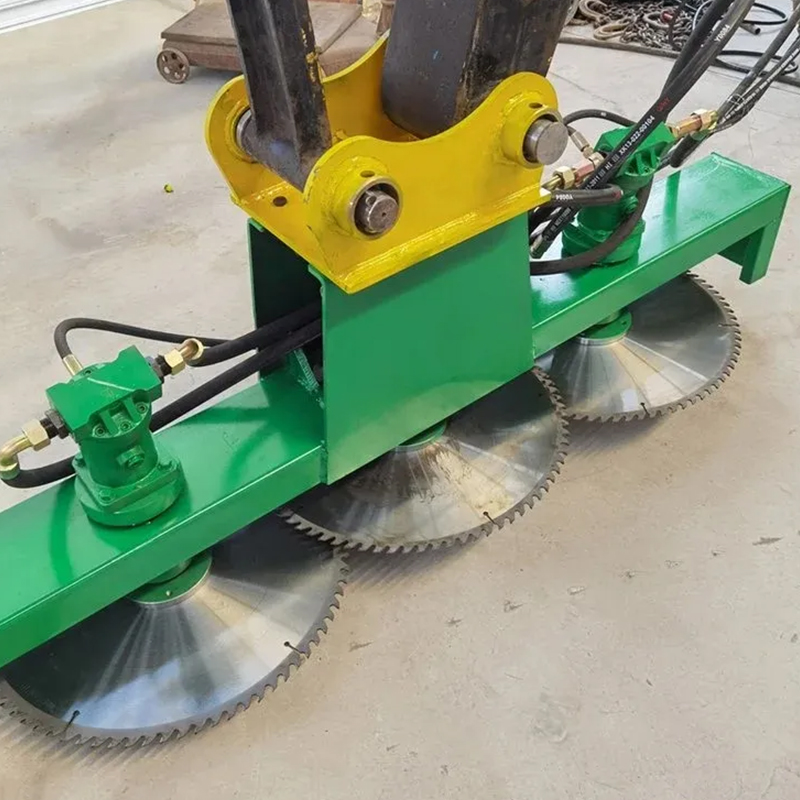

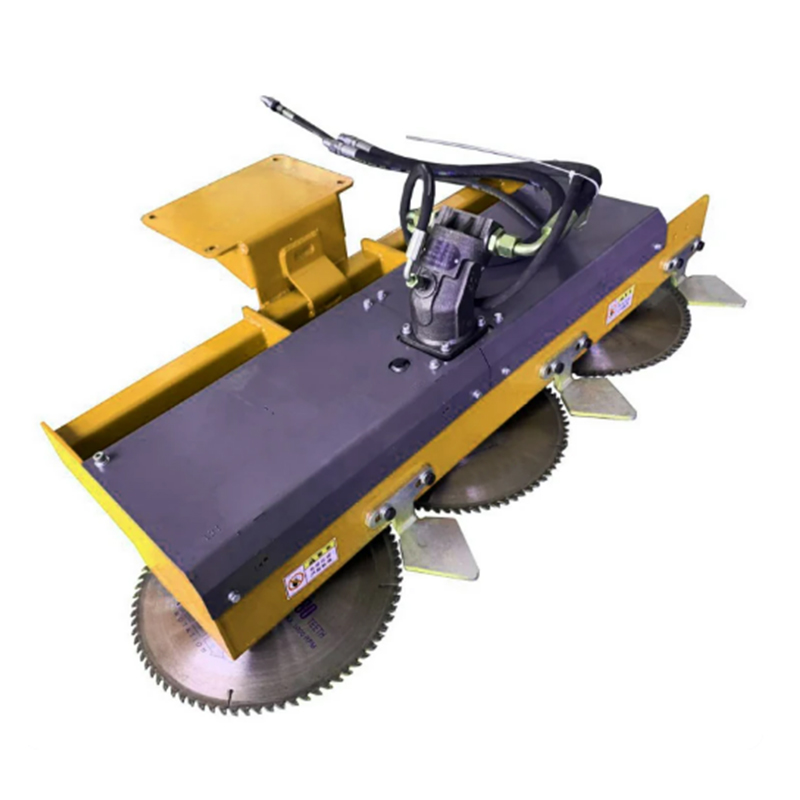

Trimming Assembly
The trimming assembly is made up of 7 saw discs, which are driven by 3 powerful hydraulic motors. High hydraulic oil flow guarantees the powerful cutting strength.
Variable Trimming Robot
The trimmer is solenoid hydraulic valve control, it can be adjusted in different kinds of movements, which cab be used to finish variable jobs. No matter horizontal, vertical, slant trimming, all are easier to this machine.
High Arm Reach
The trimmer can be used to cut branches which are 6 meters high. Trimming works at high position is available by owning this machine.
Strong Hydraulic System
The tree trimmer is equipped with PTO Drive Hydraulic System and Multi-function electric joystick control. Stable and strong hydraulic support to your trimming works.
